ESD Mat Resistance Explained: Complete Guide to Surface Resistance, Ohms and Testing
ESD Mat Resistance Explained
The resistance of an ESD mat determines how safely static electricity is controlled, dissipated, and discharged from a workstation, operator, tool, or electronic component.
In electronics manufacturing, PCB assembly, SMT production, repair benches, laboratories, and cleanrooms, an ESD mat is not only a rubber surface. It is part of a complete static control system.
A good ESD mat should not discharge electricity too fast, and it should not allow static electricity to stay on the surface for too long.
Most ESD mats used for electronics work are designed with a surface resistance range between:
10⁶ Ω to 10⁹ Ω
This range is commonly considered static dissipative, which means the mat can safely and gradually dissipate static charges to ground.
If the resistance is too low, discharge may happen too quickly.
If the resistance is too high, static may not dissipate effectively.
That is why understanding ESD mat resistance is essential before choosing, testing, or using an ESD mat.
Quick Answer: What Is the Resistance of an ESD Mat?
The typical resistance range of an ESD mat is usually between:
10⁶ Ω and 10⁹ Ω
This means the mat is static dissipative and can help control electrostatic discharge in electronics manufacturing environments.
For most ESD workbenches, PCB repair stations, SMT lines, and EPA areas, a dissipative ESD mat is preferred because it allows static electricity to discharge in a controlled way.
What Is ESD Mat Resistance?
ESD mat resistance refers to how much the mat resists the flow of electrical current.
Resistance is measured in ohms, shown as:
Ω
In simple terms:
Lower resistance = faster discharge
Higher resistance = slower discharge
But in ESD protection, the goal is not always the lowest resistance.
The goal is controlled discharge.
An ESD mat must safely move static charges away from sensitive components without creating a sudden discharge event.
That is why most ESD mats are designed to be static dissipative instead of highly conductive.
Why ESD Mat Resistance Matters
Static electricity is invisible, but it can damage electronic components.
A person may not feel static discharge until the voltage reaches around several thousand volts. However, sensitive electronic components may be damaged by much lower voltages.
This is especially important for:
PCB assembly
IC handling
SMT production
Semiconductor packaging
Electronics repair
Cleanroom workstations
Testing laboratories
ESD protected areas
An ESD mat with the correct resistance helps:
Reduce static buildup
Control discharge speed
Protect sensitive components
Create a safer workstation
Improve ESD compliance
Support grounding systems
Without the correct resistance, an ESD mat may look professional but fail to protect electronics properly.

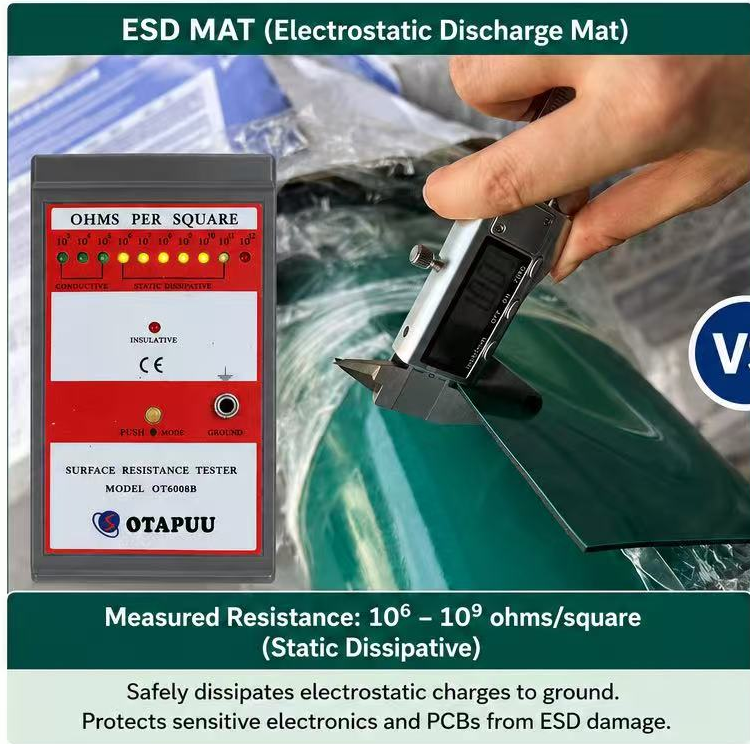

Typical ESD Mat Resistance Range
The table below explains the common resistance classifications used in static control.
| Material Type | Resistance Range | Meaning |
|---|---|---|
| Conductive | 10³–10⁵ Ω | Very fast discharge |
| Static Dissipative | 10⁶–10⁹ Ω | Controlled discharge |
| Anti-Static | 10⁹–10¹² Ω | Reduces static generation |
| Insulative | >10¹² Ω | Does not safely dissipate static |
For most electronics workstations, the ideal ESD mat resistance range is:
10⁶ Ω to 10⁹ Ω
This range provides a balance between safety and static control.
Conductive vs Dissipative ESD Mat
A conductive mat has lower resistance and allows electrical current to move quickly.
A dissipative mat has higher resistance and allows charges to move more slowly and safely.
For electronics manufacturing, dissipative mats are usually preferred because they help prevent sudden discharge.
Conductive ESD Mat
Lower resistance
Faster discharge
Often used in special grounding applications
May not be ideal for all sensitive electronics
For most ESD bench mats and ESD floor mats, dissipative performance is the most practical choice.
What Resistance Should an ESD Mat Have?
For most electronics workstations, an ESD mat should have a resistance range of:
10⁶ Ω to 10⁹ Ω
This range is widely used because it helps discharge static electricity without creating a sudden current flow.
A mat below this range may be too conductive.
A mat above this range may not dissipate static electricity effectively.
The best choice depends on the application, grounding system, and ESD control requirements.
ESD Mat Surface Resistance vs Resistance to Ground
When testing an ESD mat, there are two important measurements:
RTT = Resistance Top to Top
RTG = Resistance to Ground
RTT: Resistance Top to Top
RTT measures the resistance across the surface of the mat.
It helps determine whether the mat surface is uniformly dissipative.
RTG: Resistance to Ground
RTG measures the resistance from the mat surface to the grounding point.
It helps confirm whether the mat is properly connected to ground.
Both tests are important.
A mat may have good surface resistance but fail if the grounding connection is poor.

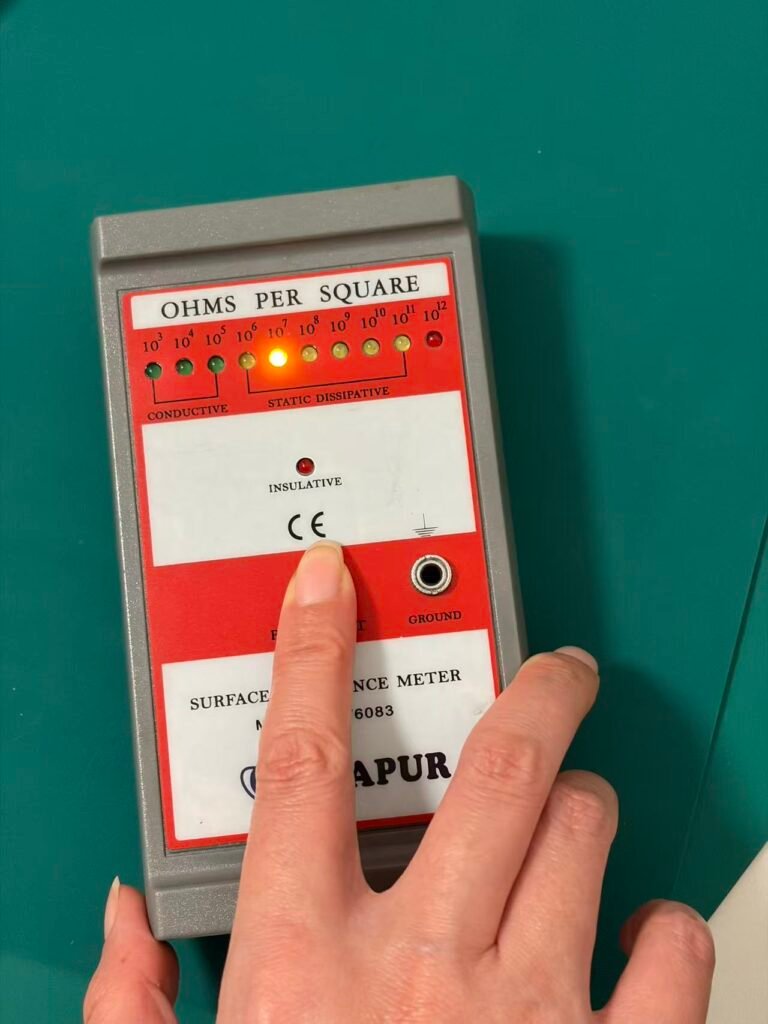

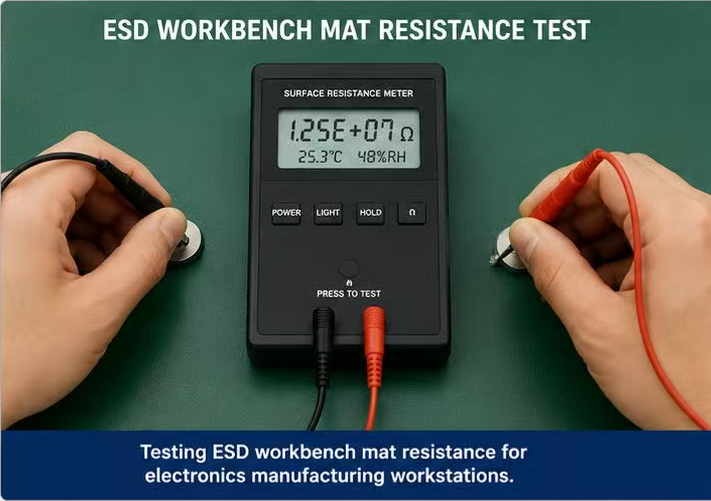

ESD Mat Resistance Test Method
To test ESD mat resistance, you usually need:
Surface resistance meter
Two electrodes
Ground cord
Common point ground
Clean test surface
ESD test record sheet
Step 1: Clean the Mat Surface
Before testing, clean the mat surface using an ESD-safe cleaner.
Dust, oil, flux residue, and chemical contamination can affect test results.
Step 2: Place the Electrodes
Place the electrodes on the mat surface according to the test method.
Make sure the electrodes are stable and properly positioned.
Step 3: Measure RTT
Measure resistance from one point on the mat surface to another point.
This checks whether the surface resistance is within the required range.
Step 4: Measure RTG
Measure from the mat surface to the grounding point.
This confirms that the mat can safely dissipate charges to ground.
Step 5: Record the Result
Record the resistance value, test date, test location, and operator name.
This helps with ESD audits and quality control.
Example ESD Mat Resistance Test Result
Example ESD Mat Resistance Test Result
| Test Area | Test Type | Result | Status |
|---|---|---|---|
| Workbench Mat A | RTT | 8 × 10⁷ Ω | Pass |
| Workbench Mat A | RTG | 3 × 10⁸ Ω | Pass |
| Floor Mat B | RTT | 5 × 10⁸ Ω | Pass |
| Floor Mat B | RTG | 7 × 10⁸ Ω |
Pass |
Need Reliable ESD Mats for Electronics Manufacturing?
ESDBEST supplies ESD bench mats, ESD floor mats, grounding mats, wrist straps, ESD gloves, and complete static control solutions for electronics factories, SMT lines, PCB assembly, and repair workstations.
Contact ESDBEST: sales2@esdbest.com
Request ESD Mat QuoteResult:
The mat is within the static dissipative range and suitable for electronics manufacturing.
Why an ESD Mat Can Fail Resistance Testing
An ESD mat can fail resistance testing for several reasons.
Common causes include:
Surface contamination
Oil or flux residue
Wrong cleaning chemical
Damaged conductive layer
Poor grounding cord connection
Loose snap connector
Aging material
Excessive wear
Incorrect installation
High humidity or very dry environment
If an ESD mat fails testing, do not assume the mat is useless immediately.
First check the grounding cord, snap connection, common point ground, and cleaning condition.
How Often Should ESD Mats Be Tested?
ESD mats should be tested regularly.
Recommended testing times include:
After installation
Before ESD audit
After cleaning
After moving the workstation
After replacing grounding cords
Monthly or quarterly for routine control
For high-risk electronics manufacturing environments, more frequent testing is recommended.
Testing frequency should match your internal ESD control program.
ESD Bench Mat Resistance
An ESD bench mat is used on workstations where operators handle PCBs, ICs, tools, and electronic assemblies.
For bench mats, resistance is very important because components are placed directly on the mat surface.
A good ESD workbench mat should:
Have stable dissipative resistance
Be properly grounded
Resist wear and chemicals
Provide a flat working surface
Support wrist strap grounding
Protect sensitive electronics
For most electronics workbenches, a resistance range of 10⁶–10⁹ Ω is recommended.
Related guide:
ESD Floor Mat Resistance
An ESD floor mat helps control static generated by walking, footwear, carts, and operator movement.
ESD floor mats are commonly used in:
EPA areas
Assembly lines
Testing zones
Packing areas
Repair centers
Electronics factories
ESD floor mat resistance should also be tested regularly, especially because floor mats experience more wear than bench mats.
A floor mat that becomes dirty, damaged, or poorly grounded may lose its static control function.
Related guide:
Anti Static Mat Resistance vs ESD Mat Resistance
Many people confuse anti-static mats with ESD mats.
They are not always the same.
An anti-static mat may reduce static generation, but it may not have a verified resistance range or grounding performance.
An ESD mat is designed for controlled static dissipation and is usually used with grounding accessories.
| Item | Anti Static Mat | ESD Mat |
|---|---|---|
| Static control | Basic | Professional |
| Grounding | Not always required | Usually required |
| Resistance range | May vary | Controlled |
| Electronics use | Limited | Recommended |
| Testing | Often not verified |
Should be tested |
If you are working with PCBs, ICs, SMT components, or sensitive electronics, choose a verified ESD mat instead of a general anti-static mat.
Related guide:
How to Choose the Right ESD Mat Resistance
When choosing an ESD mat, consider these factors:
Application
Workbench or floor use
PCB sensitivity
Grounding system
Resistance range
Thickness
Material structure
Chemical resistance
Heat resistance
Cleaning requirements
ESD audit needs
For most electronics factories, choose a dissipative ESD mat with resistance between:
10⁶ Ω and 10⁹ Ω
Also make sure the mat can be connected to a reliable ground.
A mat without proper grounding cannot complete the static discharge path.
ESD Mat Grounding and Resistance
Resistance and grounding must work together.
An ESD mat needs a path to ground.
The typical grounding path is:
Static charge → ESD mat → grounding cord → common point ground → earth ground
If the mat has good resistance but is not grounded, static may remain on the surface.
If the ground cord is damaged or disconnected, the ESD system may fail.
That is why ESD mat grounding should always be checked together with resistance testing.
Related guide:
ESD Mat Resistance Standards
Common ESD standards and test references include:
ANSI/ESD S20.20
ANSI/ESD STM7.1
IEC 61340-5-1
IEC 61340-2-3
These standards help define ESD control programs, testing methods, and resistance requirements for different static control materials.
For factories, the key point is not only buying an ESD mat.
The key point is building a complete ESD control system with:
ESD mats
Grounding cords
Wrist straps
ESD shoes
ESD flooring
Ionizers
Testing equipment
Regular verification
Best ESD Mat for Electronics Manufacturing
The best ESD mat for electronics manufacturing should have:
Verified resistance value
Stable dissipative performance
Reliable grounding connection
Good wear resistance
Comfortable working surface
Suitable size and thickness
Easy cleaning
Factory quality control
ESDBEST supplies ESD bench mats, ESD floor mats, ESD grounding mats, ESD wrist straps, ESD gloves, and complete static control solutions for electronics manufacturing.
For bulk ESD mat supply, OEM projects, and factory ESD workstation solutions, contact:
📞 Contact Us Today
For bulk orders, quotes, or product guidance, get in touch with our expert team:
Email: sales2@esdbest.com
Whatsapp: +86 137 1427 2599
FAQ
What is the resistance of an ESD mat?
Most ESD mats used in electronics manufacturing have a surface resistance between 10⁶ Ω and 10⁹ Ω. This range is considered static dissipative and helps control electrostatic discharge safely.
What resistance is ESD safe?
For most ESD workstations, 10⁶ Ω to 10⁹ Ω is commonly used as a safe dissipative resistance range. The exact requirement depends on the application and ESD control program.
How do you test ESD mat resistance?
ESD mat resistance is tested with a surface resistance meter and electrodes. Common tests include resistance top to top and resistance to ground.
What is RTG?
RTG means resistance to ground. It measures the resistance from the mat surface to the grounding point.
What is RTT?
RTT means resistance top to top. It measures resistance across the surface of the mat.
Can an ESD mat lose resistance over time?
Yes. An ESD mat can change resistance because of dust, oil, chemicals, wear, aging, or poor cleaning methods.
Is an anti-static mat the same as an ESD mat?
No. An anti-static mat may reduce static generation, but an ESD mat is designed for controlled static dissipation and is usually grounded and tested.
How often should ESD mats be tested?
ESD mats should be tested after installation, after cleaning, after workstation changes, and regularly during routine ESD audits.
