The ESDBEST 2 mm ESD rubber mat is a two-layer work-surface solution for electronics assembly, PCB handling, inspection, testing and repair workstations.
The static-dissipative working surface is combined with a lower-resistance conductive rubber backing to support a controlled electrical path when the mat is installed and grounded as part of an appropriate ESD control system.
Available supply formats include standard ESD mat sheets, full rolls and custom-cut 2 mm ESD mats for workstation, production and OEM requirements.
2.0 mm • Two-Layer Rubber
The 2 mm construction provides a practical ESD work surface for electronics workbenches while remaining suitable for sheet, roll and custom-cut supply. Final specifications should be confirmed according to the selected material, order and application requirements.
| Specification | 2 mm ESD Rubber Mat |
|---|---|
| Product Type | ESD Rubber Bench Mat |
| Thickness | 2.0 mm |
| Material | Rubber |
| Construction | Two-layer |
| Working Surface | Static-dissipative rubber |
| Backing Layer | Conductive rubber |
| Top Layer Resistance | 106–109 Ω |
| Bottom Layer Resistance | 104–106 Ω |
| Supply Format | Sheets, rolls and custom-cut mats |
| Grounding | Grounding snap position can be discussed according to project requirements |
| Color | Available colors subject to product and order confirmation |
| Customization | Size, color, snap position, logo, labeling and packaging |
| Application | Electronics assembly, PCB handling, testing, inspection and repair workstations |
Need a different size or workstation layout? Custom-cut ESD mats can be prepared according to the required bench dimensions and purchasing quantity.
Need full-roll supply for long electronics workbenches, multiple workstations or bulk projects? Explore ESD rubber mat rolls available for full-roll and custom-cut requirements.
Explore ESD Rubber Mat RollsThis 2 mm product is one option within our ESD bench mat range for electronics workstations.
A two-layer ESD rubber mat uses different materials or electrical characteristics on the working surface and backing layer.
The top static-dissipative layer provides the surface where electronic components, PCB assemblies and tools are handled. The lower conductive rubber layer provides a lower-resistance path as part of the mat construction and grounding arrangement.
Because the two layers perform different electrical functions, their resistance specifications should not be represented as one universal range.
The top layer is intended as the electronics work surface and uses a resistance specification of 106–109 Ω.
The bottom conductive layer provides a lower-resistance path and uses a resistance specification of 104–106 Ω.
The static-dissipative working surface and conductive backing should be evaluated according to their respective specifications rather than being treated as a single resistance range.
Review the dedicated guide for a more detailed explanation of conductive and static-dissipative ESD mat surfaces.
A 2 mm ESD bench mat can be used where electronic components or assemblies require a controlled work surface. The complete workstation should also include the appropriate grounding and verification arrangements.
ESD work surfaces for assembling and handling static-sensitive electronic components.
Workbench surfaces for PCB inspection, testing, assembly, rework and repair processes.
Controlled work surfaces for electronics measurement, inspection and quality-control stations.
2 mm ESD workbench mats for electronics servicing, maintenance and repair environments.
Sheets, rolls and custom-cut formats for multiple electronics production and assembly benches.
Review the dedicated application guide for ESD mat selection in PCB assembly and electronics handling environments.
Different workstation projects require different supply formats. ESDBEST can supply 2 mm ESD rubber mats as standard sheets, full rolls or custom-cut mats according to the installation and purchasing requirements.
Buyers should choose the supply format based on workstation dimensions, number of benches, installation method and required quantity rather than selecting by thickness alone.
Standard sheet formats are suitable for individual electronics workbenches, inspection stations and repair areas.
Full rolls are suitable for long benches, multiple workstations, production facilities and bulk ESD mat installations.
Request project-specific dimensions for workbenches, production lines and OEM requirements without relying only on standard sheet sizes.
For individual benches or standard workstation installations.
For multiple workstations, long benches or bulk ESD mat requirements.
When the mat must match a specific bench, project or OEM dimension.
Send the required dimensions, quantity and workstation application for custom-cut or bulk 2 mm ESD mat requirements.
Resistance testing provides useful technical evidence when the instrument, test method, voltage, environmental conditions, electrode arrangement and tested surface are clearly documented.
ESDBEST uses an ACL Model 800 resistance meter to record resistance measurements on actual ESD mat samples. The tested surface must always be identified because the static-dissipative working layer and conductive backing are designed for different electrical functions.
Resistance measurements are recorded using an ACL Model 800 resistance meter.
Point-to-Point (PTP) and Resistance-to-Ground (RTG) measurements are recorded as applicable to the test requirement.
Relevant conditions such as voltage, temperature, humidity and electrode arrangement can be documented with the measurement.
The top working layer or bottom conductive layer must be clearly identified because each layer has a different electrical function.
Available evidence may include resistance readings, test photographs and recorded environmental conditions associated with the tested sample.
Individual test readings represent the tested sample and recorded conditions and should not be treated as universal values for every 2 mm ESD rubber mat.
An ESD rubber mat does not provide complete protection by itself. It must be connected through appropriate grounding hardware to a verified grounding reference defined by the facility’s ESD control program.
A typical workstation may include the ESD work surface, grounding snap, mat grounding cord, common-point ground and personnel grounding equipment.
2 mm ESD rubber mat used as the controlled electronics work surface.
Provides the connection between the mat and the workstation grounding system.
The final connection should be verified according to the facility’s ESD control requirements.
Grounding should be considered together with the complete workstation, including the mat, grounding hardware, common-point ground and personnel grounding equipment where applicable.
Review the dedicated grounding guide for connection methods, workstation components and installation considerations.
Understand why an ESD mat should be connected to a verified grounding reference as part of a controlled workstation.
ESDBEST supplies 2 mm ESD rubber mats for electronics manufacturers, distributors, repair facilities, workstation projects and production installations.
Customization can be discussed according to the project requirements, including dimensions, color, grounding snap position, logo, labeling, packaging and compatible grounding accessories.
Request custom-cut 2 mm ESD mats according to the required workstation dimensions.
Order sheets or rolls for multiple workstations, production projects or distribution requirements.
Confirm grounding snap positions, grounding cords and compatible workstation accessories.
Discuss logo, labeling and packaging requirements for OEM or distributor orders.
Request available material samples and resistance information before confirming a larger order.
Buyers can discuss custom dimensions, sheet or roll supply, grounding options, OEM labeling, packaging and available samples according to the project requirements.
Send the required dimensions, quantity, color, grounding options and OEM requirements for project review and quotation.
ESDBEST supports standard, custom, OEM and bulk ESD mat requirements with in-house manufacturing and project-based supply capabilities.
Cutting and preparation of ESD rubber mat material for sheet, workstation and custom-size requirements.

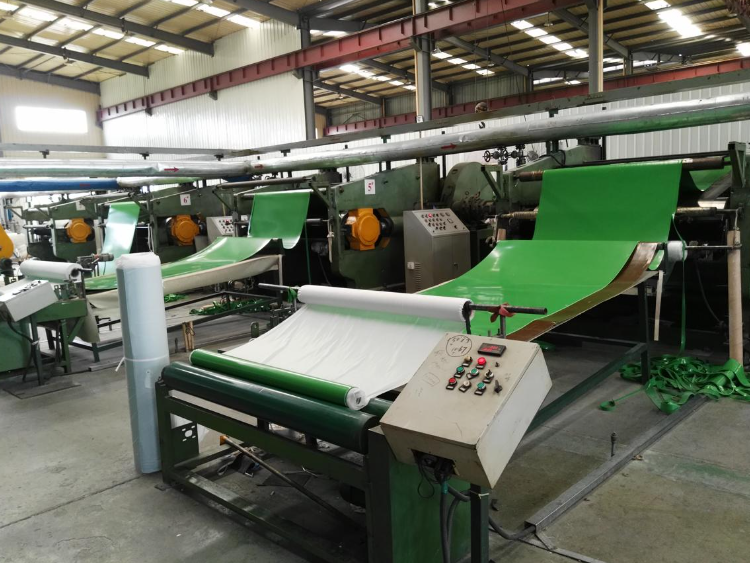

Production and handling of ESD rubber mat material for standard, roll and project-based supply.

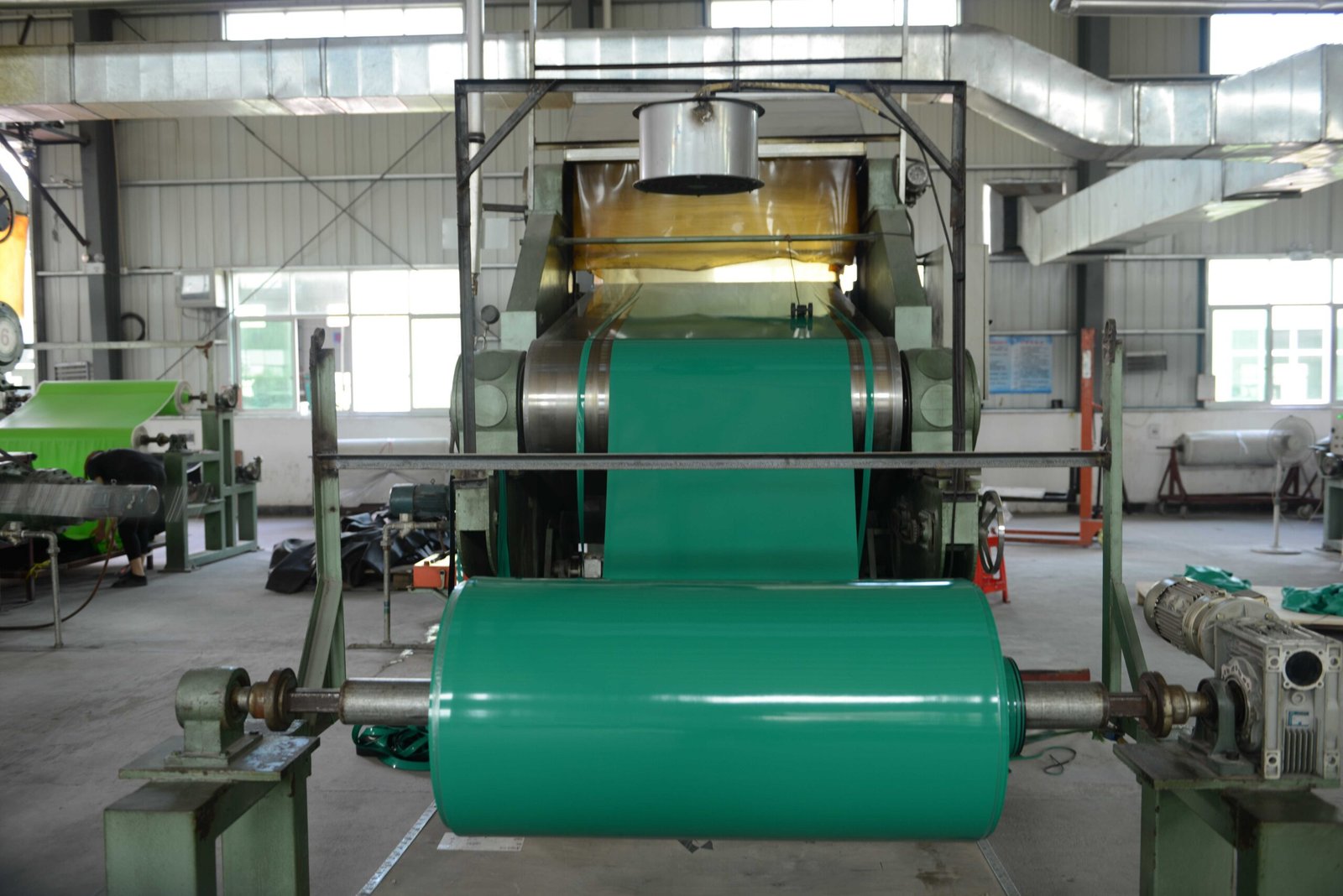

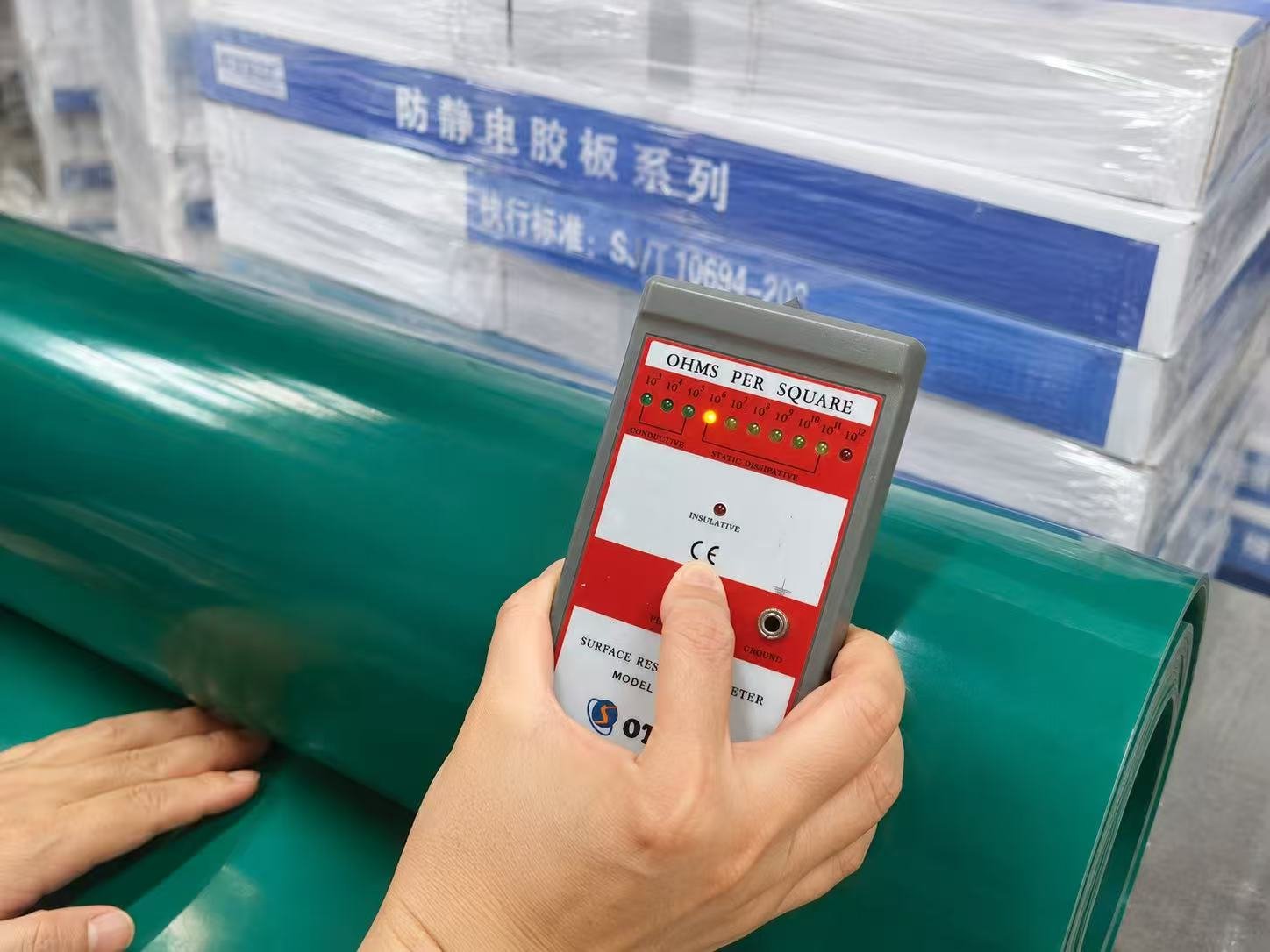

Finished ESD mats can be inspected, prepared and packaged according to order and project requirements.

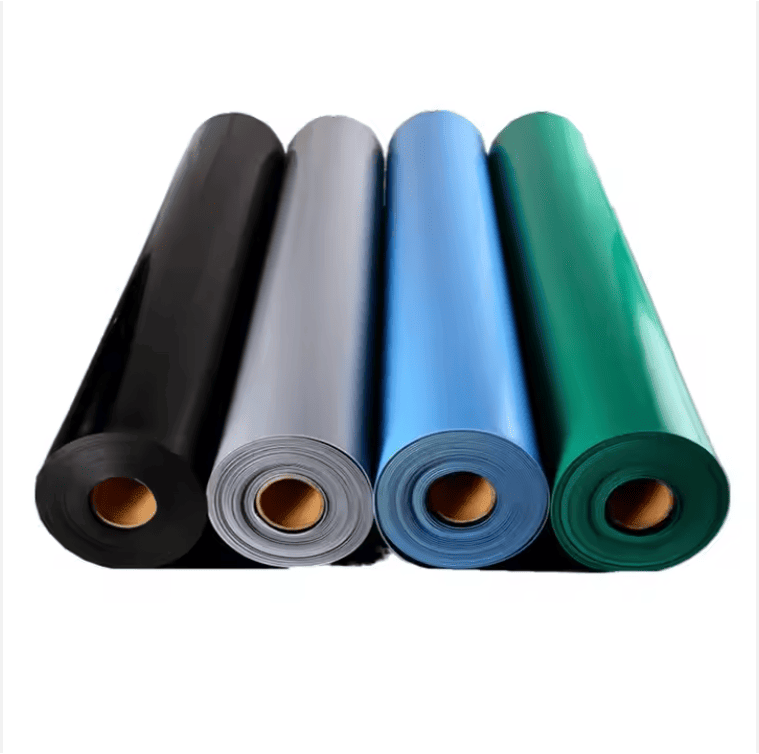

Finished ESD rubber mat rolls prepared for standard, bulk and project-based supply.
Real production, cutting, inspection and finished-product photographs help buyers evaluate manufacturing and supply capabilities before requesting samples or bulk quotations.
A 2 mm ESD rubber mat is commonly used as a controlled work surface for electronics assembly, PCB handling, inspection, testing and repair workstations.
Yes. Available supply formats may include standard sheets, full rolls and custom-cut mats according to the selected product and order requirements.
Yes. Custom dimensions can be discussed according to workstation size, project layout and purchasing quantity.
The product uses a two-layer rubber construction with a static-dissipative working surface and a lower-resistance conductive backing.
Yes. The mat should be connected through appropriate grounding hardware to a verified grounding reference as part of the workstation’s ESD control system.
Yes. Contact ESDBEST with the intended application, required dimensions, quantity, color and electrical requirements to ask about available samples.
Tell us the application, required dimensions, quantity, color, grounding requirements and any OEM or packaging needs. ESDBEST can help confirm the available 2 mm ESD rubber mat configuration for your project.
Send your size, quantity, application and customization requirements for a direct 2 mm ESD rubber mat quotation.
Ask about available samples, material options and initial project requirements before bulk ordering.
For technical documents, other ESD mat requirements or project discussions, visit the ESDBEST contact page.
