ESD Floor Mat Grounding Guide
Introduction
Proper ESD floor mat grounding is essential for any static control floor mat to work effectively.
Without grounding, an ESD floor mat cannot safely dissipate electrostatic charges and may provide little to no protection for sensitive electronic components.
This guide explains why grounding matters, what hardware is used, and how to verify grounding performance.
⸻
Why Grounding Matters
Electrostatic discharge occurs when accumulated static electricity is released suddenly.
Grounding provides a controlled discharge path, allowing electrons to flow safely from the mat to ground.
Key reasons grounding is critical:
•Prevents sudden ESD events that can damage components
•Keeps personnel body voltage within safe limits
•Ensures compliance with ESD control programs
•Enables consistent, repeatable static dissipation
An ungrounded ESD mat behaves like an ordinary floor covering and does not provide reliable ESD protection.
⸻
Grounding Hardware & Methods
ESD floor mats are grounded using standardized accessories:
•Grounding Snap / Stud
Installed through the mat to create a reliable electrical contact.

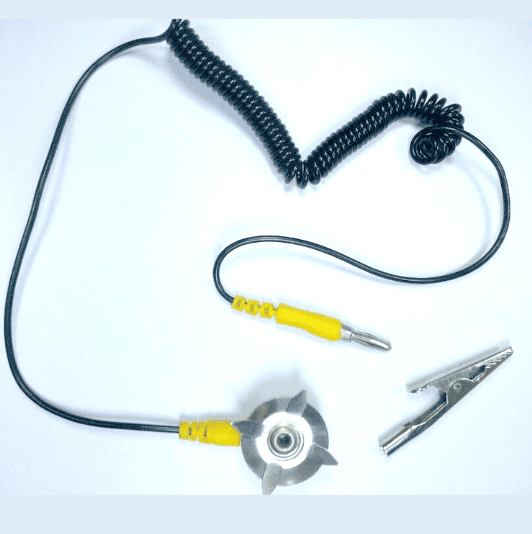

•Grounding Cord
Connects the snap to a verified ground point. Common lengths include 10 ft or 15 ft.
•Ring Terminal or Banana Plug
Used to connect to grounding bars or electrical outlets (ground only).
•Common Point Ground (Optional)
Central grounding point for multiple mats or workstations.
⚠️ Grounding cords are typically green/yellow to indicate safety ground.
⸻
Testing Grounding Performance
After installation, grounding performance must be verified.
Typical checks include:
•Resistance to ground testing using an ESD meter
•Ensuring resistance falls within the dissipative range required by the ESD program
•Periodic re-testing after cleaning or relocation
Regular testing confirms the grounding path remains effective over time.
⸻
