A Guide to Anti Static Gun

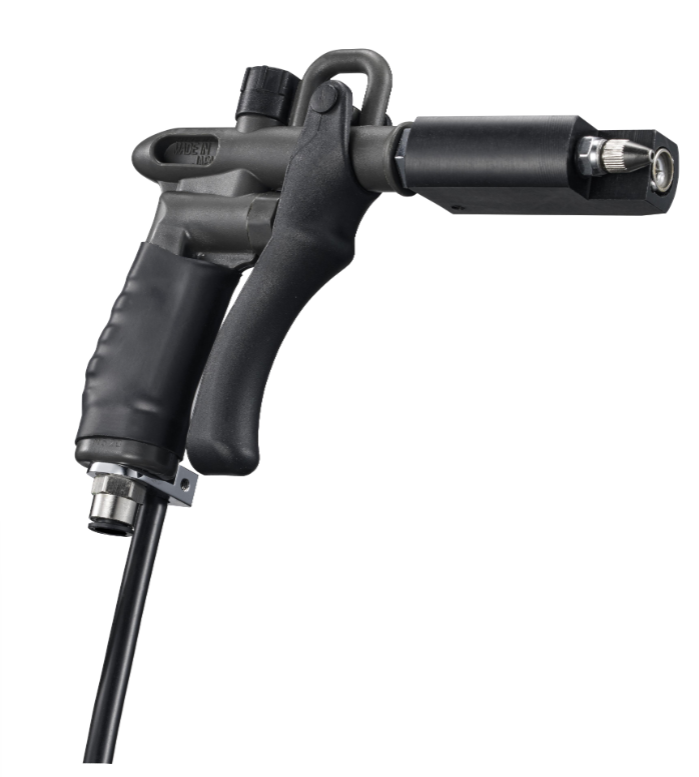

anti static gun
ParameterSpecification
Working Voltage4.6KV (Non-inductive type) and 5.6KV (Inductive type)
Current Consumption200uA
Weight0.5kg
High-voltage Wire Length2.5M
Operating Temperature0°C ~ 50°C
Compressed Air Pressure40~70psi
Ion Balance0±35V
Static Elimination Time<3S

HORBEST Anti Static Gun: Your Ultimate Solution to Static Electricity Troubles

Static electricity is an invisible nuisance that disrupts daily life and industrial operations alike. From dust-clinging glassware and static-shocked electronic devices to flawed paint finishes and contaminated industrial parts, static causes frustration, waste, and costly rework. HORBEST anti static gun are engineered to eliminate these problems—combining cutting-edge ionized air technology, user-friendly design, and durable construction to deliver fast, effective, and reliable static neutralization. Whether you’re a homeowner tackling household static or a professional in industrial coating, painting, or electronics manufacturing, HORBEST has the perfect anti static solution for you.

An anti static gun (also called an ionizing gun, static eliminator, or static neutralizer) is a handheld or portable device that generates a stream of balanced positive and negative ions. Powered by compressed air and/or an internal battery, it neutralizes static charges on surfaces by attracting opposite charges: negatively charged surfaces absorb positive ions from the gun, while positively charged surfaces draw in negative ions. Beyond static neutralization, the high-velocity compressed air also blows away stubborn dust, debris, and contaminants—leaving surfaces clean, static-free, and ready for use. HORBEST anti static guns leverage advanced ionization technology to ensure instant results, covering a wide range of materials including film, glass, plastic, lenses, metal panels, and electronic components.

HORBEST offers two high-performance models tailored to different needs, representing the most versatile types of anti static gun on the market:

ION X PRO Professional Anti Static Gun

Designed for industrial and professional use (e.g., auto body shops, painting booths, industrial coating), this battery-powered model integrates seamlessly with compressed air systems. It features a long-lasting Ni-H2 battery (6-hour continuous runtime, 4-hour charge), ON/OFF display, and high-output ion emitters for consistent ionization. Ideal for large surfaces like car panels, it prevents dust attraction during painting, improves color matching, and reduces rework.

JH2002C Adjustable Voltage Ion Wind Gun

A compact, lightweight (0.5kg with cable) option for daily use and small-scale applications (e.g., lens cleaning, film handling, electronic device maintenance). It uses an adjustable high-voltage power supply (JH1103D), inductive ion needle (safe to touch), and adjustable wind speed. With a wide operating pressure range (0.3–0.8Mpa) and fast neutralization time (0.7s at 150mm), it’s perfect for precise, delicate tasks.

For Daily Life

Eliminates static cling on fabrics, dust on glass/lenses, and static shocks from electronic devices.



Makes cleaning delicate items (camera lenses, phone screens, vinyl records) easier—no scratches from dry wiping.



Prevents static-related damage to sensitive electronics (e.g., computer components, headphones).

For Industrial & ESD Protection

Ensures flawless paint/coating finishes by neutralizing panels, reducing dust nibs, fisheyes, and dry spray.



Improves color uniformity (especially for metallic paints) by evenly neutralizing surfaces.



Reduces material waste and rework costs—clean, static-free surfaces require fewer repaints.



Complies with ESD standards (IEC-61340-5-1 A·6) to protect electronic components during manufacturing/assembly.

Core Advantages of HORBEST Anti Static Gun

Fast & Effective: Neutralizes static in under 1 second (ION X PRO) or 0.4–0.9s (JH2002C) with consistent ion flow.



User-Friendly: Ergonomic design for fatigue-free long-term use; lightweight (0.5–0.6kg) and easy to operate.



Durable: Built to withstand over 50,000 activations—ideal for high-frequency use.



Safe: Induction ion needles (no electric shock), low ozone emission (≤0.03PPM), and ESD/ATEX/CE certifications.



Versatile: Works on all materials (film, glass, plastic, metal, electronics) and adapts to home/industrial settings.

HORBEST prioritizes safety and performance, adhering to global standards:

  • Certifications: EX (ATEX) and CE certified (ION X PRO); complies with ESD standard IEC-61340-5-1 A·6.
  • Safety Features: Reliable grounding required for operation; insulated high-voltage lines; non-electrifying ion needles; low ozone emissions (0.003–0.03PPM, well below safety limits).
  • Performance Metrics:
    • Neutralization Time: 0.4s (60mm), 0.5s (90mm), 0.7s (150mm) for JH2002C; <1s for ION X PRO.
    • Residual Voltage: ≤±5V (JH2002C), ≤±35V (tested per ME268A).
    • Operating Pressure: 35–50 PSI (2.5–3.5 bar) for ION X PRO; 40–70 PSI (0.3–0.8Mpa) for JH2002C.
    • Power Supply: Ni-H2 battery (ION X PRO) or 110V/220V AC (JH2002C).
To maximize results, align your HORBEST anti static gun with your specific needs:

Step 1: Identify Your Use Case

  • Household/Daily Use: Choose JH2002C for cleaning lenses, film, plasticware, or eliminating static on clothing.
  • Industrial/Professional Use: Opt for ION X PRO for auto painting, industrial coating, or large-panel prepping.

Step 2: Check Environmental Requirements

  • Ensure proper ventilation (especially in industrial settings).
  • Confirm power supply (battery for ION X PRO; AC outlet for JH2002C) and compressed air access.

Step 3: Set Performance Goals

  • For precision tasks (e.g., lens cleaning): Prioritize adjustable wind speed (JH2002C).
  • For high-volume work (e.g., auto body shops): Focus on long battery life (ION X PRO, 6-hour runtime).

For ION X PRO (Battery-Powered, Industrial Use)

  1. Prepare the Device: Charge the Ni-H2 battery for 4 hours (full charge lasts weeks with regular use).
  2. Connect Compressed Air: Attach the gun to your paint booth or industrial air supply using the included brass adapter. Adjust pressure to 35–50 PSI (2.5–3.5 bar).
  3. Activate the Gun: For first use, press the trigger 20–30 times to soften the pressure (initial tightness is not a defect). The ON/OFF display will confirm ionization.
  4. Neutralize & Clean: Hold the gun 150mm from the surface, press the trigger, and move it evenly to cover the area. Each panel takes 15–30 seconds.
  5. Post-Use: Turn off the air supply, disconnect the gun, and store the battery in a cool, dry place if unused for long periods.

For JH2002C (AC-Powered, Daily/Small-Scale Use)

  1. Install & Ground: Mount the nozzle (if using a bracket) and connect the gun to the JH1103D high-voltage power supply. Attach the blue grounding terminal to the power supply’s ground post (ensure solid grounding).
  2. Connect Air & Power: Use an 8mm hose to link the gun to a compressed air source (0.3–0.8Mpa). Plug the power supply into a grounded outlet (110V/60Hz or 220V/50Hz).
  3. Adjust Settings: Use the JH1103D regulator to adjust voltage (up to 7.0KV) and wind speed as needed.
  4. Operate: Hold the gun 60–150mm from the target surface, press the trigger, and direct the ionized airflow to neutralize static and blow away dust.
  5. Calibrate (If Needed): Use a static tester (e.g., ME268A) to check ion balance. Adjust via the regulator’s tuning hole with a flathead screwdriver if necessary.
Beyond standard use, HORBEST anti static gun offer creative solutions for everyday and professional challenges:

  • Photography Gear Maintenance: Clean camera lenses, filters, and film rolls without scratching—static-free surfaces repel dust.
  • 3D Printing Post-Processing: Neutralize static on 3D-printed parts to remove support material residue and prevent dust buildup.
  • Musical Instrument Care: Clean vinyl records, guitar pickups, or piano keys—static-free instruments sound clearer and last longer.
  • Electronics Assembly: Protect circuit boards, microchips, and sensitive components from static damage during repair or assembly.
  • Textile & Craft Projects: Eliminate static on fabric, yarn, or paper to prevent tangling and ensure precise cuts.
  1. Application Scope: Choose a model suited to your use (daily vs. industrial).
  2. Neutralization Speed: Prioritize fast neutralization (≤1s) for efficiency.
  3. Portability: Opt for lightweight designs (0.5–0.6kg) for easy handling.
  4. Durability: Look for robust construction (50,000+ activations) for long-term use.
  5. Safety Features: Ensure ESD/ATEX/CE certifications, low ozone, and shock-proof ion needles.
  6. Adjustability: Adjustable wind speed/voltage (JH2002C) adds versatility.
  7. Price: HORBEST anti static guns range from $30–$80, offering value for home and professional users.

Routine Maintenance

  • Clean Regularly: Wipe the nozzle and ion needle with a dry cloth to remove dust/debris (avoid water).
  • Check Grounding: Inspect grounding cables monthly—loose connections reduce performance.
  • Calibrate Annually: Use a static tester to verify ion balance; adjust if residual voltage exceeds ±35V.
  • Battery Care (ION X PRO): Charge fully before use; avoid overcharging (4-hour max).
  • Air Filter (Optional): Install an air filter to prevent moisture/debris from clogging the nozzle.

Common Troubleshooting

  • No Ionization: Check power supply (battery charge or AC connection) and grounding.
  • Slow Neutralization: Increase air pressure or reduce distance from the surface.
  • Static Reappears: Ensure the surface is fully dry; humidity <60% may affect results.
  • Trigger Stiffness: For new guns, press 20–30 times to soften the mechanism (not a defect).
  • Uneven Cleaning: Move the gun slowly and evenly to ensure full coverage.
  1. Skipping Grounding: Poor grounding reduces neutralization efficiency and risks static buildup.
  2. Using Wrong Pressure: Too low ( <35 PSI) = weak airflow; too high ( >70 PSI) = surface damage.
  3. Ignoring Calibration: Uncalibrated guns may leave residual static—test quarterly.
  4. Overlooking Battery Care: Leaving the ION X PRO uncharged for months shortens battery life.
  5. Using in Explosive Environments: Never operate in flammable/explosive areas (violates safety standards).
  6. Touching Ion Needle During Use: While HORBEST’s induction design is safe, avoid contact to prevent damage.
  7. Rushing the Process: Moving the gun too fast results in incomplete neutralization—take 15–30 seconds per surface.

1. Do anti-static guns work?

Yes—HORBEST anti static guns use proven ionized air technology to neutralize static charges in under 1 second. They effectively eliminate static on all materials and blow away dust, preventing recontamination. Independent tests (per ME268A) confirm residual voltage ≤±35V, meeting ESD standards.

2. What is the purpose of the anti-static gun?

The primary purpose is to neutralize static electricity on surfaces, preventing dust attraction, static shocks, and damage to sensitive materials. It also cleans surfaces by blowing away stubborn debris—dual functionality for home and industrial use.

3. How much is the antistatic gun?

HORBEST anti static guns are affordably priced between $30–$80, depending on the model. The JH2002C (daily use) starts at $30, while the ION X PRO (professional/industrial) is priced up to $80.

4. How to use an antistatic gun?

Follow the step-by-step guide above: prepare the device (charge/connect power), attach compressed air, activate the gun, hold it 60–150mm from the surface, and move evenly to neutralize static and clean.

5. Can I use an anti static gun on electronics?

Yes—HORBEST models are safe for electronics (e.g., phones, circuit boards). The low residual voltage and induction design prevent damage to sensitive components.

6. How long does the battery last (ION X PRO)?

The Ni-H2 battery provides 6 hours of continuous runtime (15–30 seconds per panel) and lasts weeks between charges with regular use. Charging takes 4 hours.

7. Is the anti static gun safe for humans?

Absolutely—HORBEST guns feature induction ion needles (no electric shock), low ozone emissions (≤0.03PPM), and insulated high-voltage lines. Follow safety guidelines (e.g., no use in explosive areas) for optimal safety.
Static electricity doesn’t have to be a hassle—HORBEST anti static gun deliver fast, reliable, and safe solutions for home and industrial use. With two versatile models, ergonomic design, durable construction, and affordable pricing ($30–$80), they’re the perfect tool to eliminate static, clean surfaces, and improve efficiency. Whether you’re a homeowner tired of dust-clinging glass or a professional painter seeking flawless finishes, HORBEST has you covered.

Don’t let static slow you down—invest in a HORBEST anti static gun today and experience the difference: cleaner surfaces, fewer mistakes, and peace of mind.
