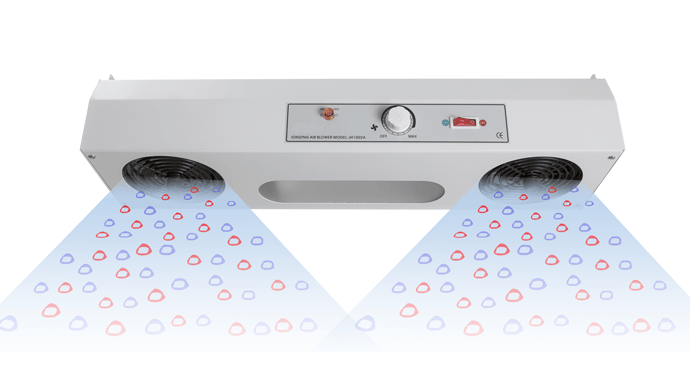

2-Fans Self-Cleaning Suspended Ioniser
Self-Cleaning Ionizer Fan | |
Fan alarm | The indicator light is on when the fun is stuck or doesn’t rotate; meanwhile, the buzzer sends out alarm sound. |
Fan air flow | •Low Speed: 60 CFM / 2.5 m/s •High Speed: 150 CFM / 6.0 m/s |
Voltage regulation mode/ applied voltage | high frequency AC method/2200V |
Ion balance | Within ±10V (measuring distance 300mm) |
Destaticizing time | Within 3s (measuring distance 300mm) |
Cleaning timer set time | Can set within 1-999 hours |
Ozone generation amount (ppm) | Within 0.03ppm (measuring distance 150mm) |
Service environment SJt | -10℃ to +50℃ |
Service environment humidity | <60% (no condensation) |
Overall size/mm | 660mm (L) × 90mm (W) × 160mm (H) |
Weight/Kg | 5Kg |
| Air Ionizer Fan |
Working Principle of air ionizer fan
The HB1201A-2 Dual-Head DC Ionizing Fan adopts an internationally advanced closed-loop control system. The circuit automatically adjusts the output of positive and negative ions based on the voltage detected by a sensor (metal mesh cover) at the fan outlet. This ensures excellent ion balance and stable performance across a wide range of temperature and humidity conditions.
Product Features of air ionizer fan
The HB1201A-2 Dual-Head DC Ionizing Fan is part of the ionizing fan series (customizable with options like automatic cleaning and digital airflow display). air ionizer fan’s DC ionizing fan features a suspended or benchtop design and is ideal for providing static elimination across a work surface used by an operator.
Technical Specifications of air ionizer fan
•Power Consumption: ≤30W
•Input Voltage: 220V / 50Hz
•Current Consumption: 2A (at maximum airflow)
•Airflow Output:
•Low Speed: 60 CFM / 2.5 m/s
•High Speed: 150 CFM / 6.0 m/s
•Effective Coverage: 300mm × 300mm × 900mm
•Ozone Generation: <0.03 PPM (measured 15cm in front of the fan)
•Operating Temperature: -10℃ to +50℃
•Dimensions (without bracket): 600mm (L) × 90mm (W) × 160mm (H)
•Dimensions (with bracket): 660mm (L) × 90mm (W) × 160mm (H)
•Residual Voltage: ≤±5V (at 300mm–600mm test distance)
•Weight: 5kg
•Housing Material: Cold-rolled steel
•Surface Finish: Powder coating
Static Elimination Test Results of air ionizer fan
Test Conditions
•Test Voltage: 1kV to 100V
•Ambient Temperature: 22℃
•Humidity: ≤60%
Test Distance 300mm 600mm
Neutralization Time
Positive 0.3s 0.7s
Negative 0.4s 0.8s
Residual Voltage ≤±5V ≤±5V
•The ion balance voltage and static elimination time of this suspended DC ionizing fan comply with ESD standards.
•The static elimination time is measured from 1000V down to 100V.
•All test data is based on measurements taken using the ME268A Electrostatic Comprehensive Tester.
•Test results may vary depending on ambient temperature and humidity.
